PostPosted: Tue Mar 7 2017, 04:50 Post subject: VT Tanks (R.F.A début des années 1980) Reply with quote

*
Connaissez vous cet engin tout droit sorti de l'esprit malade d'un mécano ork sous amphétamines ! df

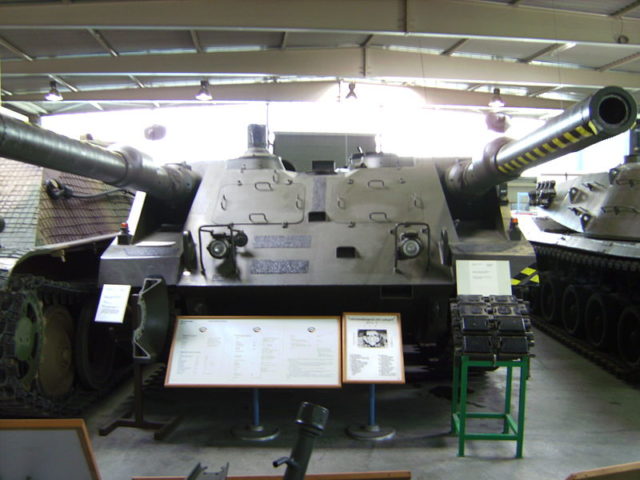

VT 1-2 (R.F.A)

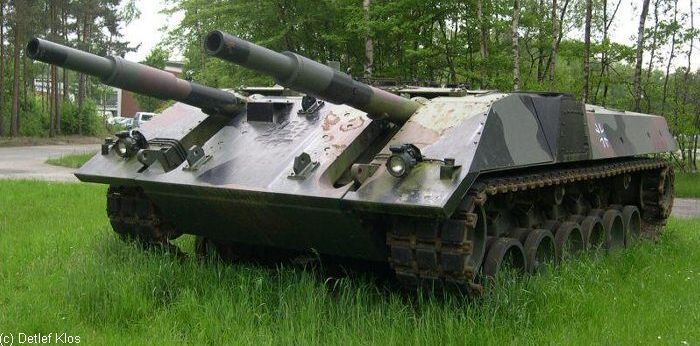

GVT-3 (R.F.A)

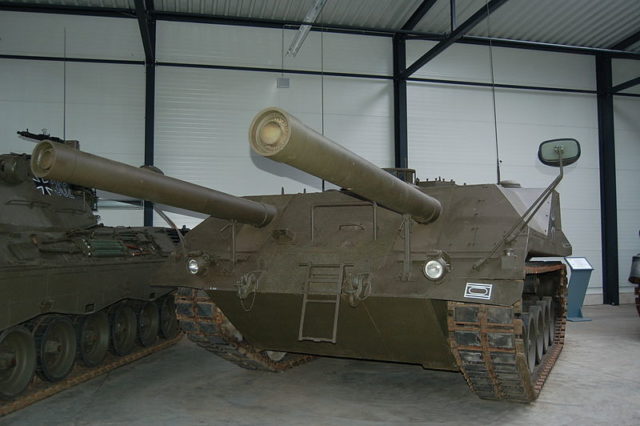

GVT-4 (R.F.A)

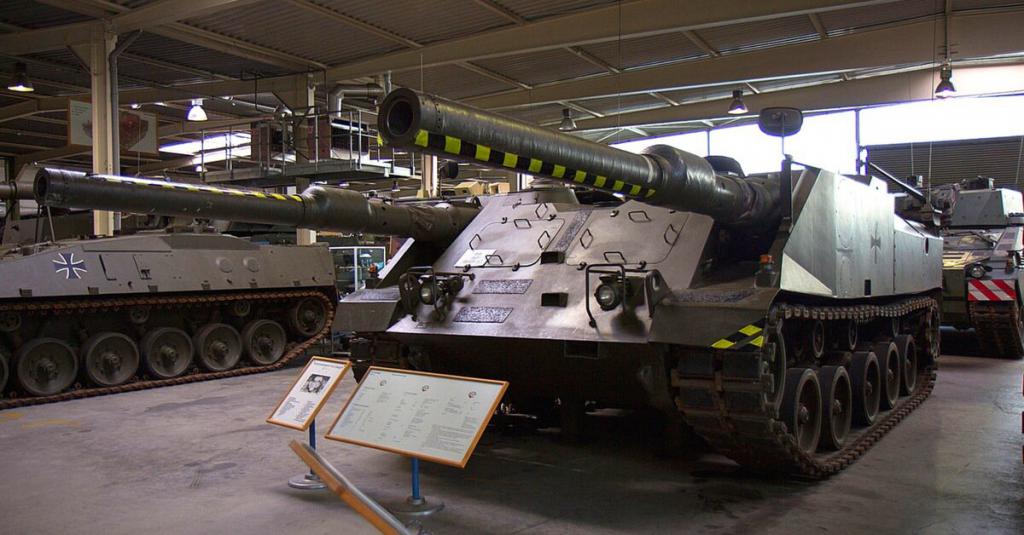

VT 1-2 (R.F.A)




Descripion :

Type

Tank destroyer
Place of originWest Germany
Production history
DesignerMaK[1]
Designed1970s
ManufacturerMaK
Produced1974 and 1975 (VT 1-1 and VT 1-2)
No. built2 VTs and 5 GVTs
VariantsVT 1-1, VT 1-2, GVTs
Specifications
Weight43.5 tonnes (42.8 long tons; 48.0 short tons)
Length9.06 m
Width3.54 m
Height2.04 m
Crew3 (commander, driver, gunner)

Main
armament
2 x 105 mm guns
or
2 x Rh 120 guns
EngineMTU MB803 Ra-500
1,500 PS (sustained )(1,100 kW)
2,400 PS (short time)(1765 kW)[2]
Power/weight34.5 PS/t(sustained)(25.3 kW/t)
55 PS/t (short time)(40.5 kW/t)
Suspensionhydropneumatic
Speed70 kilometres per hour (43 mph)
40 kilometres per hour (25 mph) offroad


Article sur WarHistoryOline, (en Anglais) :

https://www.warhistoryonline.com/military-vehicle-news/tank-profile-vt-tank…



(Sources photos : IABG Lichtenau, Detlef Klos, Panzerbaer, warhistoryonline.com // Tableau : Wikipedia).
